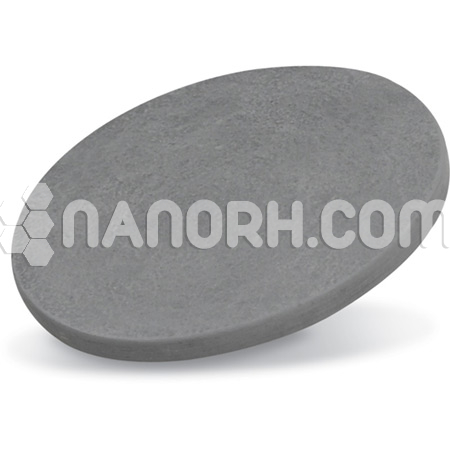

Tin Selenide Sputtering Targets

Tin Selenide Sputtering Targets

Introduction:

Tin selenide sputtering targets is a compound semiconductor with intriguing electrical and optical properties. It has garnered significant attention for its potential applications in various high-tech fields due to its strong light absorption, excellent thermoelectric performance, and ability to form high-quality thin films through sputtering techniques. Tin selenide can exist in different crystalline phases, each exhibiting unique properties suitable for specific applications.

Applications

Thermoelectric Materials:

SnSe is recognized for its exceptional thermoelectric properties, making it suitable for applications in energy harvesting and waste heat recovery. Its ability to efficiently convert heat into electricity is valuable for thermoelectric generators.

Photovoltaics:

Tin selenide can be used in thin-film solar cells, where its high absorption coefficient allows for efficient light absorption and energy conversion. Research is ongoing to optimize its use in photovoltaic technologies.

Infrared Detectors:

Due to its favorable bandgap and semiconductor properties, SnSe is being explored for use in infrared detectors. These applications are critical in thermal imaging, environmental sensing, and night vision technologies.

Optoelectronic Devices:

SnSe is utilized in the development of optoelectronic devices such as light-emitting diodes (LEDs) and laser diodes, particularly for applications in the mid-infrared range.

Phase Change Memory:

Tin selenide is being investigated for its potential in phase change memory applications, where it can be used to develop non-volatile memory devices with high-speed data storage capabilities.

Catalysis:

SnSe can also serve as a catalyst in various chemical reactions, particularly in the field of photocatalysis for environmental remediation and energy conversion processes.

Sputtering Process

The sputtering process for tin selenide involves using a SnSe target, which, when bombarded with energetic ions, releases atoms that can deposit onto substrates. This technique allows for precise control over the composition and thickness of the resulting films, which is essential for optimizing their performance in various applications.
