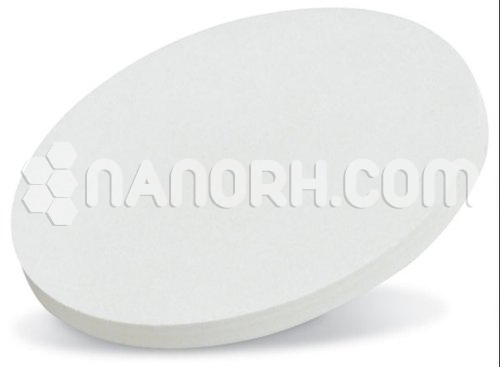

Niobium Selenide Sputtering Targets
Niobium Selenide Sputtering Targets
Niobium Selenide Sputtering Targets | |
Product No | NRE-43527 |
CAS No. | 12034-77-4 |
Formula | NbSe2 |
Molecular Weight | 250.82 |
Purity | >99.9% |
Density | 6.3 g/cm3 |
Thickness | 3 mm ± 0.5mm (can be customized) |
Diameter | 50 mm ± 1mm (can be customized) |
Shape | Round |
Resistivity | NA |
Thermal Conductivity | NA |
Niobium Selenide Sputtering Targets
Introduction:
Niobium selenide sputtering targets is a layered transition metal dichalcogenide (TMD) known for its interesting electrical, optical, and thermal properties. It exhibits superconductivity at relatively high temperatures and has unique structural characteristics, making it a subject of extensive research in materials science and condensed matter physics. Sputtering is a popular method for depositing NbSe₂ thin films on various substrates, enabling a wide range of applications in advanced technologies.
Applications:
Superconducting Materials: NbSe₂ is well-known for its superconducting properties, making it ideal for applications in superconducting circuits, quantum computing, and other technologies that require materials with low electrical resistance at cryogenic temperatures.
Electronic Devices: Due to its semiconducting properties, NbSe₂ is explored for use in field-effect transistors (FETs) and other electronic components. Its layered structure allows for the fabrication of ultrathin devices that can be integrated into flexible electronics.
Optoelectronic Applications: NbSe₂ exhibits strong light-matter interactions, making it suitable for use in optoelectronic devices, including photodetectors, light-emitting diodes (LEDs), and laser devices.
Spintronics: The unique electronic properties of NbSe₂ make it a candidate for spintronic applications, where the spin of electrons is utilized in addition to their charge, potentially leading to faster and more efficient devices.
Thermal Conductors: NbSe₂’s high thermal conductivity allows it to be used in applications requiring effective heat dissipation, such as in electronic packaging and thermal management systems.
Layered Material Research: As a member of the TMD family, NbSe₂ is often studied in fundamental research related to two-dimensional materials, contributing to the development of new nanostructured devices and materials.
Conclusion
Niobium selenide sputtering targets play a critical role in advancing technologies across various fields, including superconductivity, electronics, and optoelectronics.
